FD 200W Solar panel
The FD 200 is a 200W foldable solar panel packing high-efficiency monocrystalline cells into a 6.5 kg weatherproof briefcase and delivering up to 4.90 A at 40.8 V—perfect for off-grid cabins, RVs, backup power, and field operations. Built with ETFE encapsulation and FR-4 fiberglass backing, it offers superior durability, efficiency, and long service life.
High-Efficiency Monocrystalline Cells (22% Efficiency)
Compact Foldable Design, 6.5 kg for Easy Carrying
Durable ETFE Coating & Weather-Resistant Build
Plug-and-Play Anderson 30A Connector (3m Cable)
Reliable Power for Off-Grid and Backup Applications
Peak Power: 200 W
Open-Circuit Voltage (VOC): 49.3 V
Maximum Power Voltage (VMP): 40.8 V
Maximum Power Current (IMP): 4.90 A
Short-Circuit Current (ISC): 5.32 A
Cell Efficiency: ≥ 22 %
Folded Size: 672 × 445 × 30 mm

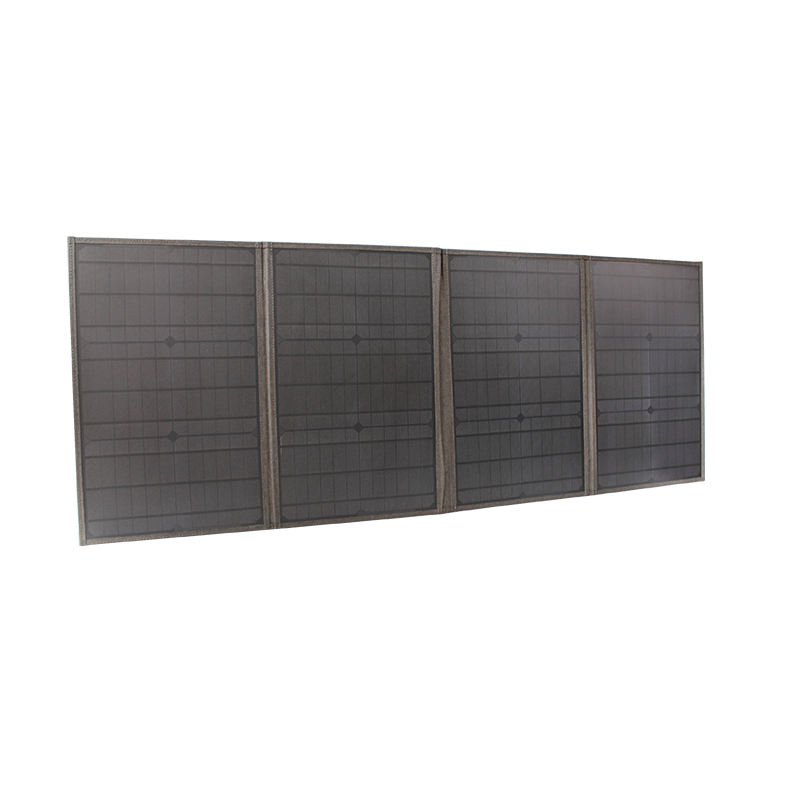

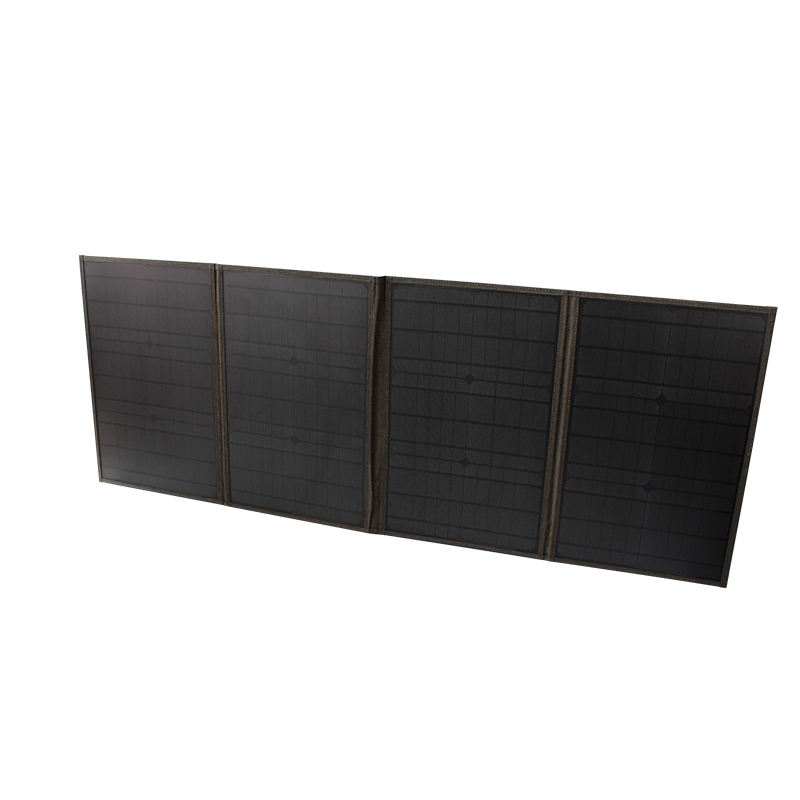

Unfolded Size: 1815 × 672 × 10 mm
Weight: 6.5 kg
Connector: 2 × 1.5 mm² cable, 3 m Anderson 30 A
High-Efficiency A-Grade Monocrystalline Cells
Rugged Composite Construction
Drop-Impact Resistance
Waterproof Fabric Housing
Plug-and-Play Connector
MC4 Extension Cables (1 m, 2 m, 5 m lengths)
MC4 Y-Branch Connectors for parallel string configurations
10~15 years
- Download Datasheet
- Installation Video Tutorial (YouTube/Embedded Player)
- User Manual
- FAQ
Product Introduction
Our FD 200W delivers 200 W peak power from ten A-grade monocrystalline cells (≥ 22 % efficiency at STC) and provides up to 4.90 A charging current at 40.8 V for 30–55 V battery systems—even in extreme temperatures (−40 °C to 85 °C). With higher efficiency ETFE surface encapsulation and durable FR-4 fiberglass backing, it ensures long service life and reliable off-grid performance.
Rugged, Weatherproof Construction
Frosted PET front sheet and FR-4 fiberglass backplane are laminated into a waterproof, abrasion-resistant fabric housing. Sealed edges survive 1 m drops and heavy rain, ensuring over 10 years of reliable outdoor operation.
Effortless Portability & Tool-Free Setup

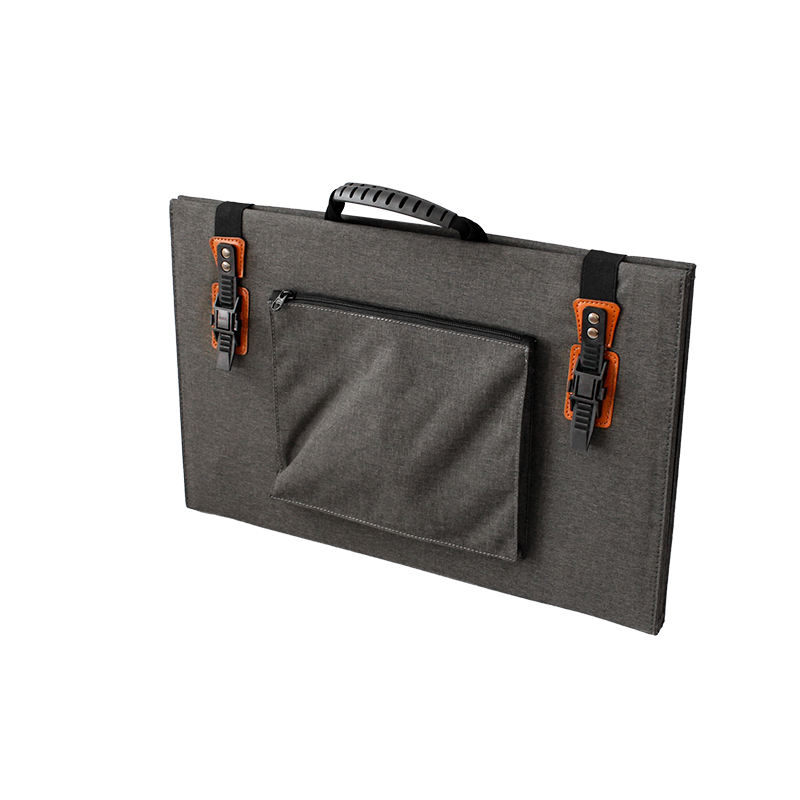

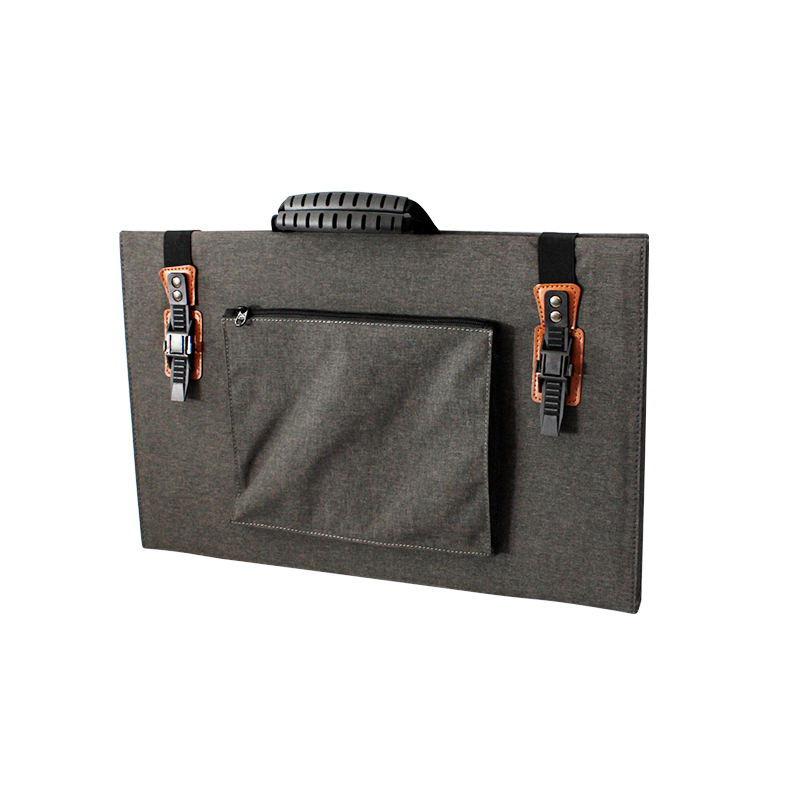

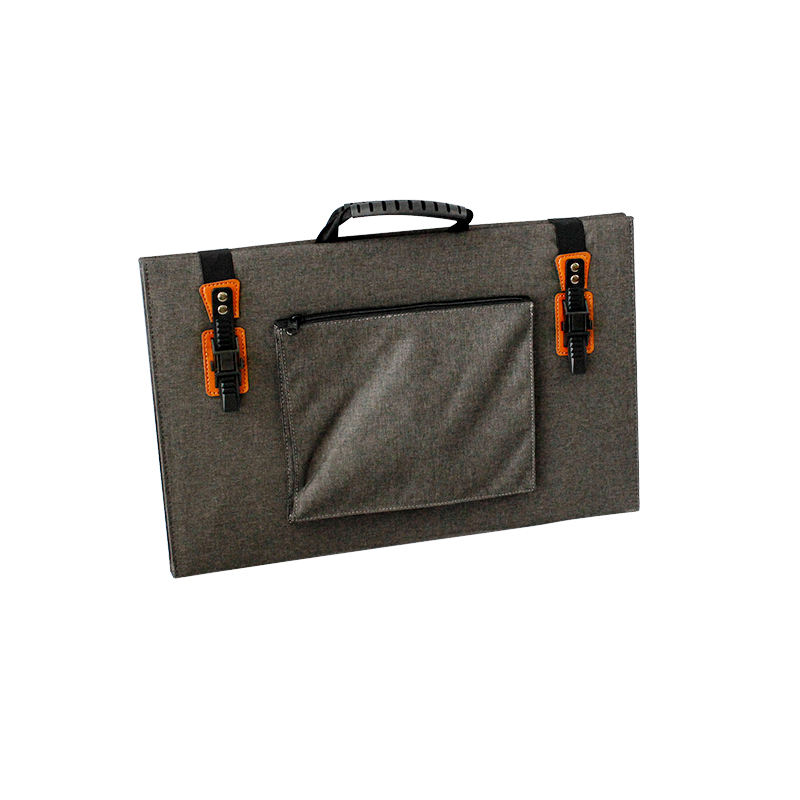

Folds compact to 672 × 445 × 30 mm and weighs just 6.5 kg. The built-in handle, adjustable straps, and reinforced buckles make it easy to carry like a briefcase or hang on tents, poles, or RV rails. No tools required—simply unfold, angle toward the sun, plug in, and start charging within seconds.
Technical Data
| PARAMETER | SPECIFICATION |
|---|---|
| Model | FD-200 |
| Peak Power | 200W |
| Open-circuit Voltage | 49.3V |
| Max. Voltage | 40.8V |
| Max. Current | 4.90A |
| Short-circuit Current | 5.32A |
| Solar Cell Efficiency | 22% |
| Solar Panel Connections | 40W / 18V × 10 pcs in parallel connection |
| Folded Size | 672 × 445 × 30 mm |
| Unfolded Size | 1815 × 672 × 10 mm |
| Weight | 6.5 kg |
| Solar Cell | A grade |
| Front Cover Material | ETFE |
| Back Board | FR-4 Fiberglass board |
| Cable / Connector | 2 × 1.5 mm² / 3M Anderson connector (30A) |
| Tension Limit | 150N |
| Grade | A |
| NOCT | 48 ± 2 ℃ |
| Operating Temperature | -40 ℃ to +85 ℃ |
| Temperature Coefficient (Current) | 0.1% / ℃ |
| Temperature Coefficient (Voltage) | -0.37% / ℃ |
| Temperature Coefficient (Power) | -0.45% / ℃ |
| STC Conditions | Irradiance: 1000 W/m²; Cell temperature: 25℃; AM1.5 |
