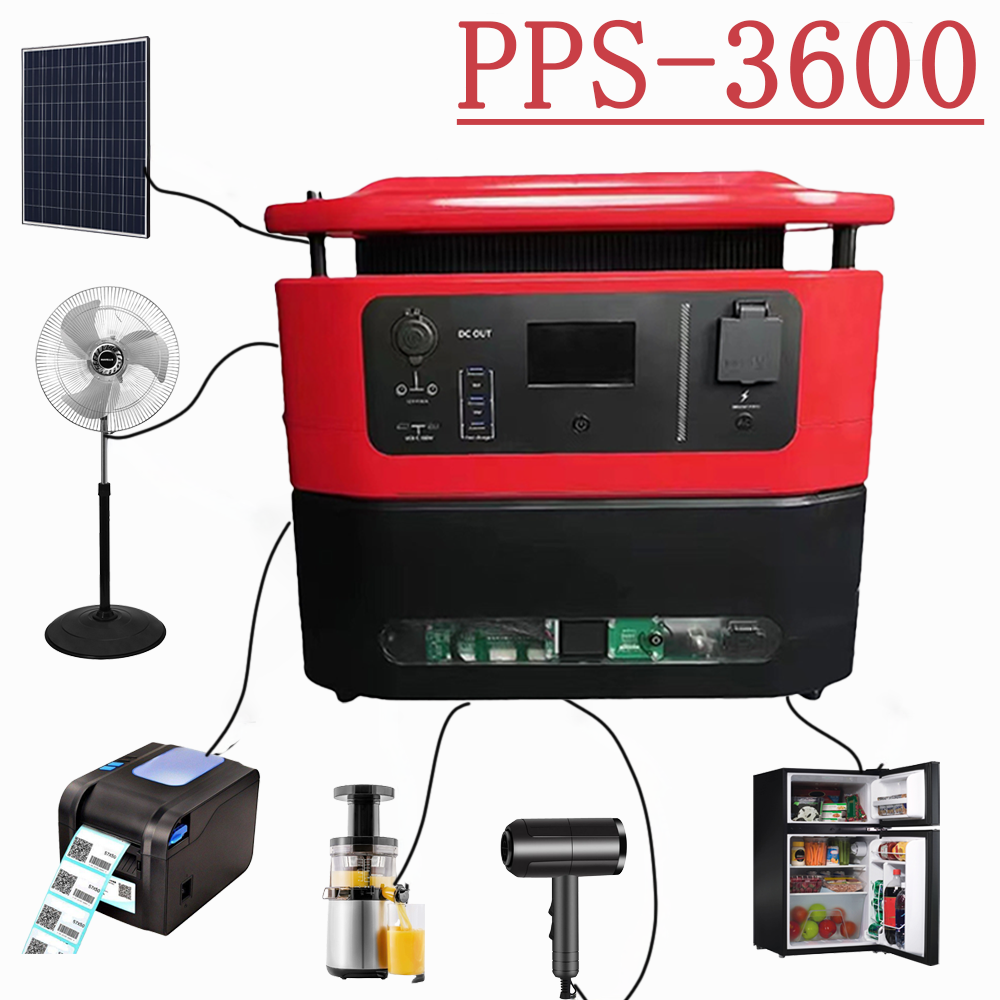

PPS3600 Portable Power Station for Home Backup
- 3600W AC Output – Heavy-duty power for tools, medical devices, or kitchen appliances.
- 2200Wh Expandable Battery – Support home essentials (e.g., fridges, CPAP machines) for hours.
- Multi-Port System – 12V/10A DC, 100W USB-C PD, 3×18W USB-A, and Fast Charge port.
- Charging Modes – Solar (600W max), AC wall plug, car charger, Type-C input.
3*USB-A QC18W
2*USB-C PD100W
DC 12V
Rated capacity：2200Wh Per Battery
Cell Life: ＞5000
Solar: MPPT 12-60V
3*USB-A QC18W
2*USB-C PD100W
DC 12V
Rated capacity：2200Wh Per Battery
Cell Life: ＞5000
Solar: MPPT 12-60V
3*USB-A QC18W
2*USB-C PD100W
DC 12V
Rated capacity：2200Wh Per Battery
Cell Life: ＞5000
Solar: MPPT 12-60V
Perfect for camping, road trips, or power outages — this 3600W portable power station keeps your lights, phones, fans, and small appliances running when you need them most.
1 × Portable Power Station
1 × Wall Charger
1 × Cigarette Lighter Adapter
1 × Instruction Manual
12-24 Months Warranty
We can assist client in obtaining various certifications, such as CE, MSDS, and others.
- Production Capabilities:
Custom logo branding
Various casing materials and color options
Multiple input/output interfaces
- Packaging Solutions:
Sustainable and eco-friendly packaging
Custom-printed labels
Tailored packaging structure design
- Certifications:
UN38.3, MSDS, and Dangerous Goods Certificates
Product Introduction
Engineered for Africa’s energy needs, this 5000W portable unit offers 2200Wh (expandable) capacity to sustain homes, clinics, and businesses. Solar-compatible (600W input), AC/car charging ensures uninterrupted power for vaccine storage, tools, and critical devices during outages. Rugged and built for harsh climates, it supports off-grid communities and mobile ventures—powering resilience across Africa.
All-In-One Functional Design
Equipped with AC/DC/USB outputs, an LED light, and a real-time display, this 3600W power station is designed for versatility and ease of use — ideal for both home backup and outdoor power needs.
Reliable Backup Power for Daily Essentials
With 3600W/2200Wh+ output, this portable power station easily supports essential home appliances like lamps, fans, laptops, phones, hair dryers, and TVs—making it an ideal solution for power outages or limited-grid areas.
Perfect Companion for Outdoor Adventures
Whether you’re camping in the mountains or having a picnic by the lake, the PPS-3600 keeps your lights, stove, phone, and speaker running. Multiple output jacks let you power everything you need — all at once.
Technical Data
We are a professional manufacturer of portable power stations and solar inverters based in Shenzhen, China. Backed by a 20-person R&D team and over 200 skilled workers, we offer inverter design, customized production, and OEM/ODM services to meet diverse clients needs.
| Model | PPS-3600 |
| Built-in Inverter | |
| DC terminal operating voltage range | 48V |
| Startup no load current | ≤0.5A |
| AC Output Voltage | 100V ~220V |
| AC Output Frequency | 60Hz 5% or 50Hz 5% |
| Waveform | Pure sine wave |
| The maximum Conversion Rate | ≥93% |
| Constant Output Power | 3600W |
| Peak power(10m) | 7200W |
| The fan start | Temperature-controlled, when the internal temperature rises above 40℃, the fan starts to operate |
| Overload protection | ≥3800W |
| Over Temperature Protection | When the temperature in the machine exceeds 70℃, the inverter is protected and there is no AC output |
| Built-in solar charging | |
| Allowable input voltage | 12V~60V |
| Charging mode | MPPT |
| Protection | Turn off after Short circuit .overcurrent. battery full |
| Charging efficiency | Above 95% |
| Multifunctional panel parameters | |
| Anderson port DC charging | The Max 60VDC |
| Anderson port DC discharging | DC12V/＞10A |
| USB output | DC 5V/2.4A ~15A |
| Cigarette lighter holder output | DC12V/120W |
| LCD | Displays battery level, output power, AC output status, charging status |
| AC output | AC110V±5%or AC220V±5% |
| AC input | AC110V~220V |
| Power switch | Inverter output and USB output are controlled by the power switch |
| Work status indication | Led lights indicate inverter and USB output status |
| Battery (25°C) | |
| Battery Type | LiFePO4 |
| Constant voltage | 12.8V 25.6V or 48V |
| Battery Capacity | 2200Wh Per Battery (Optional, larger capacity can be customized) |
| Optimum charging current | 0.1C~0.5C |
| General information | |
| Temperature to use | -20℃~50℃ |
| Moisture to use | 40~90% |
| Dimension (H*W*D) | 440*255*520mm |
| Warranty | 5 Years |
| Net Weight | 33 KG |
